Chasis
Chasis Leon
Tracción Trasera
Rendimiento Extraordinario en Exteriores
Estabilidad Superior
Partes Comunes
Sistema de asiento
Asiento Estándar Sling
Karma diseñó su asiento Sling para usuarios con necesidades clínicas de bajas a moderadas. La estructura del asiento ajustable y las funciones opcionales de posicionamiento eléctrico ofrecen un soporte moderado, mientras que los apoyabrazos abatibles facilitan el proceso de transferencia.
Compacta para Almacenaje
The Leon Sling backrest folds down flat for storage and transportation.
Funciones Posturales Opcionales
‧ 18° Basculacion Eléctrica
‧ 120° Reclinación Eléctrica
‧ Reclinación Manual
‧ Apoyapies Elevadles Manuales
Dimensiones del asiento ajustables
‧ Ancho del asiento: 415 / 465 mm
‧ Profundidad del asiento: 390 – 515 mm
(incrementos de 25 mm)
Amplia Gama de Opciones y Accesorios
Reposacabezas
Reposapiés
Electrónica y Control
Soportes de Apoyo
Otros Accesorios

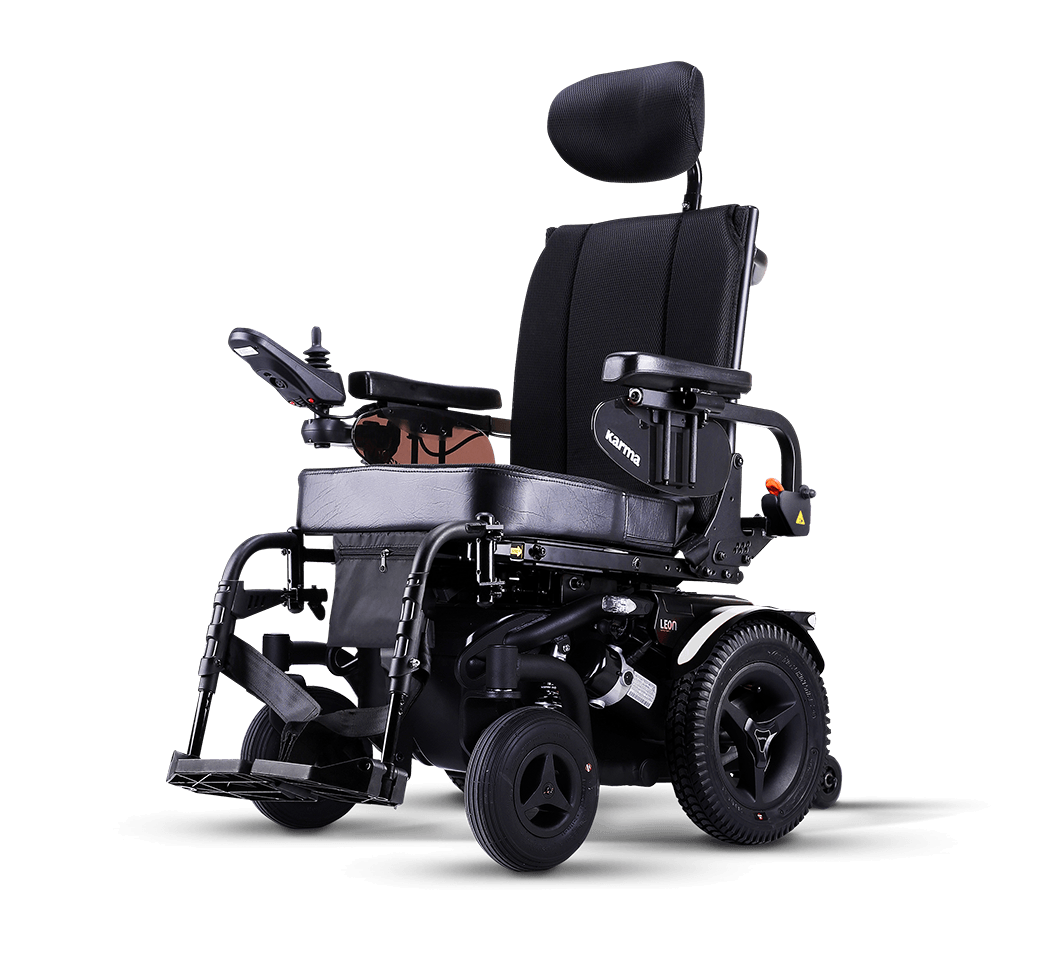

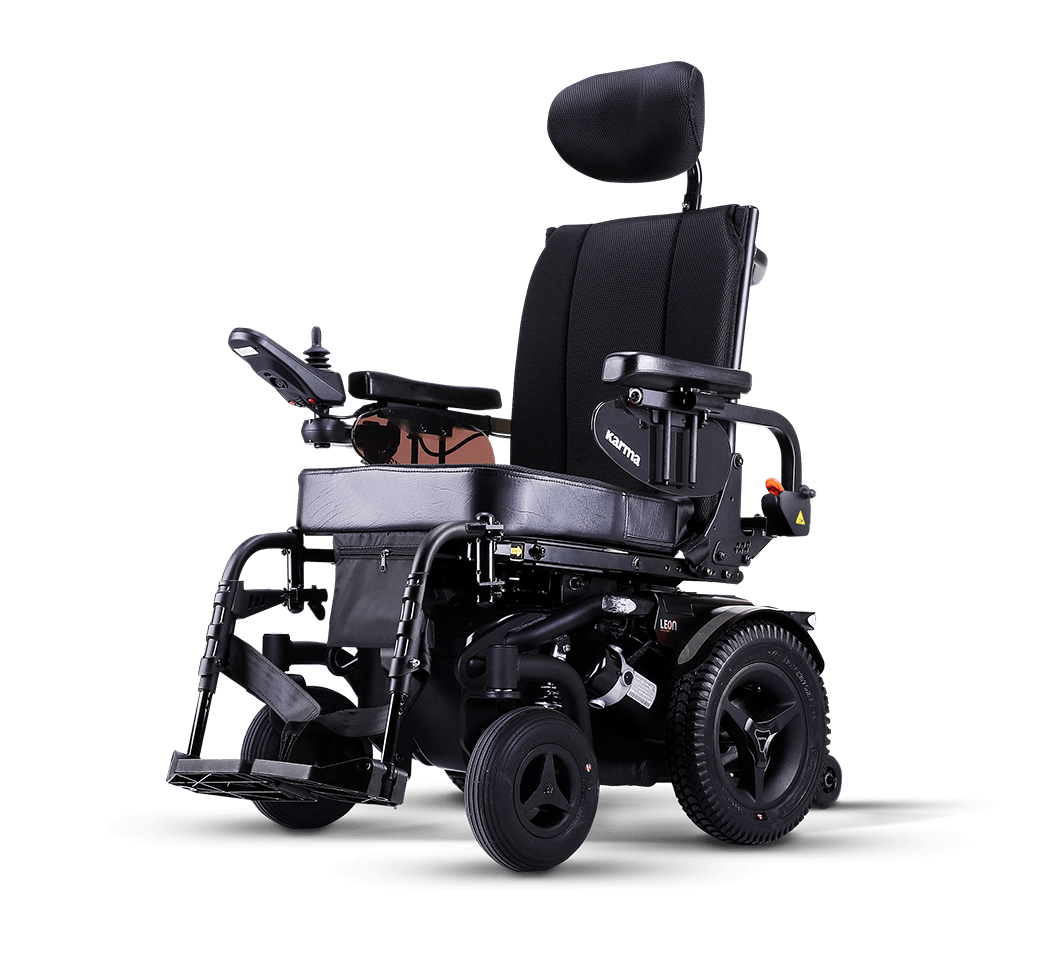

Colores laterales del chasis
Especificación
| Product Model | LENR1.1-SLN | |
| Seating System | 17’’ | 19’’ |
| Nominal seat width (mm)* | 430 | 480 |
| Nominal seat depth (mm/in)** | 400 – 475 (in 25 mm increments) | 475 – 500 (in 25 mm increments) |
| Backrest height without cushion (mm) | 545/625 | 545/625 |
| Backrest height with cushion (mm) | 465/545 | 465/545 |
| Headrest height above seat (mm) | N/A | N/A |
| Armrest to seat distance without cushion (mm) | 270 – 370 | 270 – 370 |
| Armrest to seat distance with cushion (mm) | 190 – 290 | 190 – 290 |
| Front location of armrest structure (mm) | 190 – 470 | 240 – 520 |
| Seat surface height at front edge without cushion (mm) | 460 | 460 |
| Seat surface height at front edge with cushion (mm) | 540 | 540 |
| Footrest to seat distance without cushion (mm) | 300 – 400 | 300 – 400 |
| Footrest to seat distance with cushion (mm) | 380 – 480 | 380 – 480 |
| Effective seat width (mm) | 430 – 520 | 450 – 520 |
| Effective seat depth (mm) | 400–475 (in 25 mm increments) | 475–500 (in 25 mm increments) |
| Seat plane angle (X°) (fixed angle) | 3/6/9 | 3/6/9 |
| Seat plane angle (X°) (power tilt) | 3-21 5-23 6-24 8–26 | 3-21 5-23 6-24 8–26 |
| Backrest angle (X°) | 2 – 30 | 2 – 30 |
| Seat to backrest angle (X°) (power recline) | 90–122 | 90–122 |
| Seat to backrest angle (X°) (manual recline) | 0 – 119 | 0 – 119 |
| Leg to seat angle (X°) | 109 | 109 |
| Driving Characteristics | 17’’ | 19’’ |
| Drive wheel size | 3.00 -8 (14") | |
| Front caster size | 2.80/2.50 -4 (9") | |
| Overall length with legrest (mm) | 1140 – 1180 | 1140 – 1180 |
| Overall width (mm) | 630 – 690 | 630 – 690 |
| Overall height (mm) | 890 – 960 | 890 – 960 |
| Folded length (mm) | 885 | 885 |
| Folded width (mm) | 630 | 630 |
| Folded height (mm) | 890 | 890 |
| Total mass (kg) | 146(80Ah) | 146(80Ah) |
| Total mass without batteries (kg) | 92 | 92 |
| Mass of the heaviest part (kg) | 89.5 | 89.5 |
| Maximum user weight (kg) | 136 | 136 |
| Drive range (km)³ | 44 (80Ah) | 44 (80Ah) |
| Maximum speed forward (km/h) | 6/10/12 | |
| Minimum braking distance from max speed (mm) | 2100 | 2100 |
| Obstacle climbing (mm) | 50 | 50 |
| Ground clearance (mm) | 70 | 70 |
| Minimum turning radius (mm) | 985 | 985 |
| Minimum turning radius without user (mm) | 895 | 895 |
| Reversing width (mm) | 1300 | 1300 |
| Static stability downhill (X°) | 16 | 16 |
| Static stability uphill (X°) | 9.8 | 9.8 |
| Static stability sideways (X°) | 14.5 | 14.5 |
| Dynamic stability uphill (X°) | 6 | 6 |
| Ability to climb rated slope (X°)⁴ | 12 | 12 |
| Electrical System | ||
| Controller | VR2/R-net (Optional) | |
| Motor power (W) | 450 | 450 |
| Battery capacity (Ah) | 80 x 2 | 80 x 2 |
| Charger output current (A) | 6 / 8 | 6 / 8 |
| Battery Compartment (L x W x H) (mm) | 350 x 270 x 240 | 350 x 270 x 240 |
Nota: Karma se reserva el derecho de modificar la información arriba mostrada sin previo aviso.
Descripción del dispositivo médico
Silla de ruedas motorizada con tracción trasera, espaldar en lona acolchado con barra horizontal rígida, asiento rígido con cojín básico apoyabrazos abatibles y regulables en altura, apoyapies abatibles, ajustables en altura y desmontables. Ruedas traseras de 14″ neumáticas, ruedas delanteras de 9″ neumáticas con suspensión independiente en las 4 ruedas, motores de 450W, velocidad máxima de 12 Km/h, autonomía de 30 Km. Joystick programable y abatible.
Crash Test Approved
Leon Sling is approved for transportation in accordance with ISO 7176-19. This means it is suitable to be used as a seat in a motor vehicle for transportation.
